Non-contact gloss meter YG60L is an online gloss tester innovatively developed by ThreeNH. The test probe is non-contact with the sample to be tested, and it realizes non-contact testing of samples such as liquids, sauces, powders, and fragile objects. The succinct probe design allows this product to be placed anywhere in the automated production line, and can be used for online gloss measurement and quality inspection in industries such as paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, and marble . Its unique innovative design can not only provide non-contact measurement solutions directly for the production line, but also ensure stable and high-precision measurement results.


Features of Online Non-contact Gloss Meter YG60L

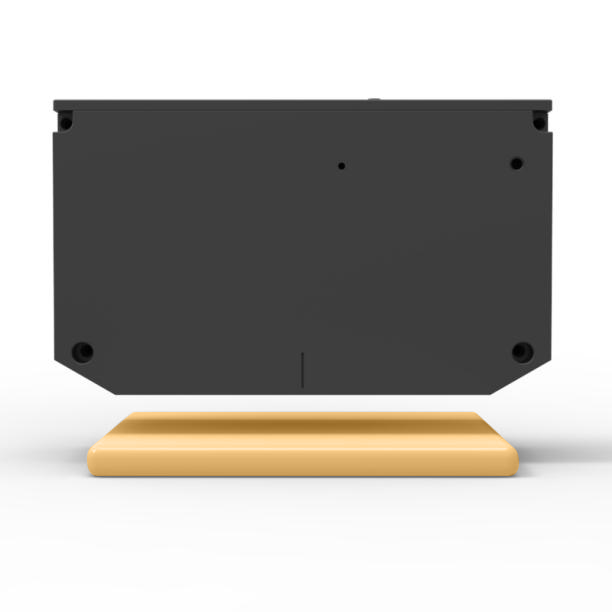

1、Non-contact Measurement without Damaging the Product

Accurate gloss data measurement can be achieved with a distance of 10mm from the measured plane.

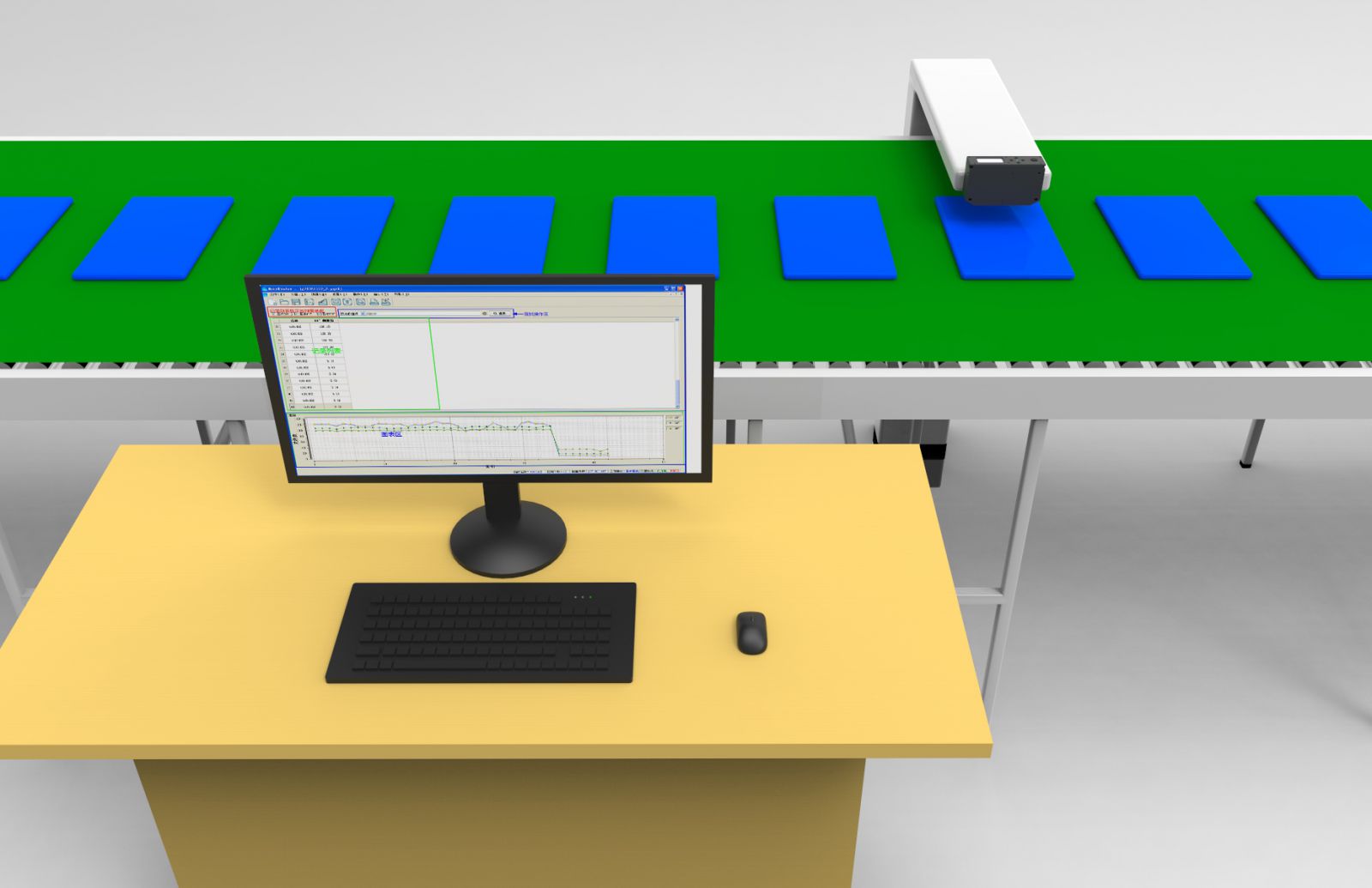

2、Online real-time monitoring of product gloss

Open data interface for system integration and expansion of application scope

3、Data Stability

The repeatability of the instrument is very good, within the measurement range of 0-100GU, the repeatability can reach ±0.5GU, within the measurement range of 100-1000GU, the repeatability can reach ±0.5% of the reading

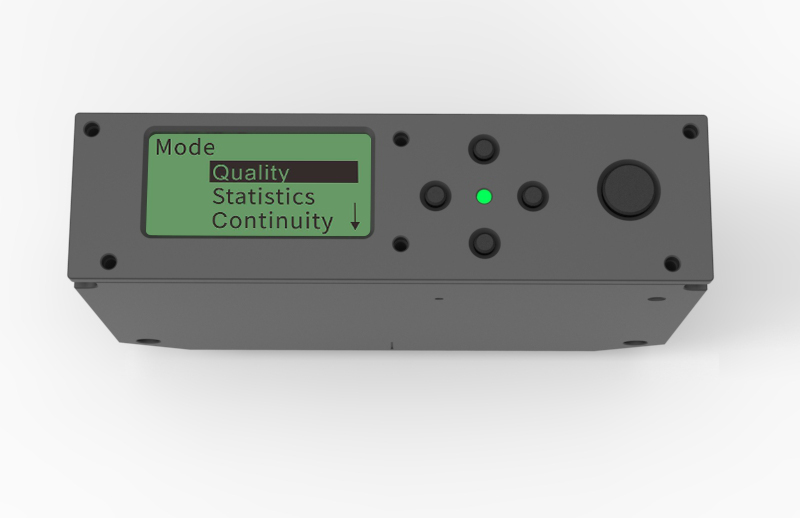

4、Multi-mode Switchable

Support basic mode, statistical mode, continuous mode, quality control mode switching, adapt to different application scenarios. The normal mode is ready to release and measure, fast reading; the quality control mode can customize the upper and lower limits to realize the rapid detection of incoming materials.

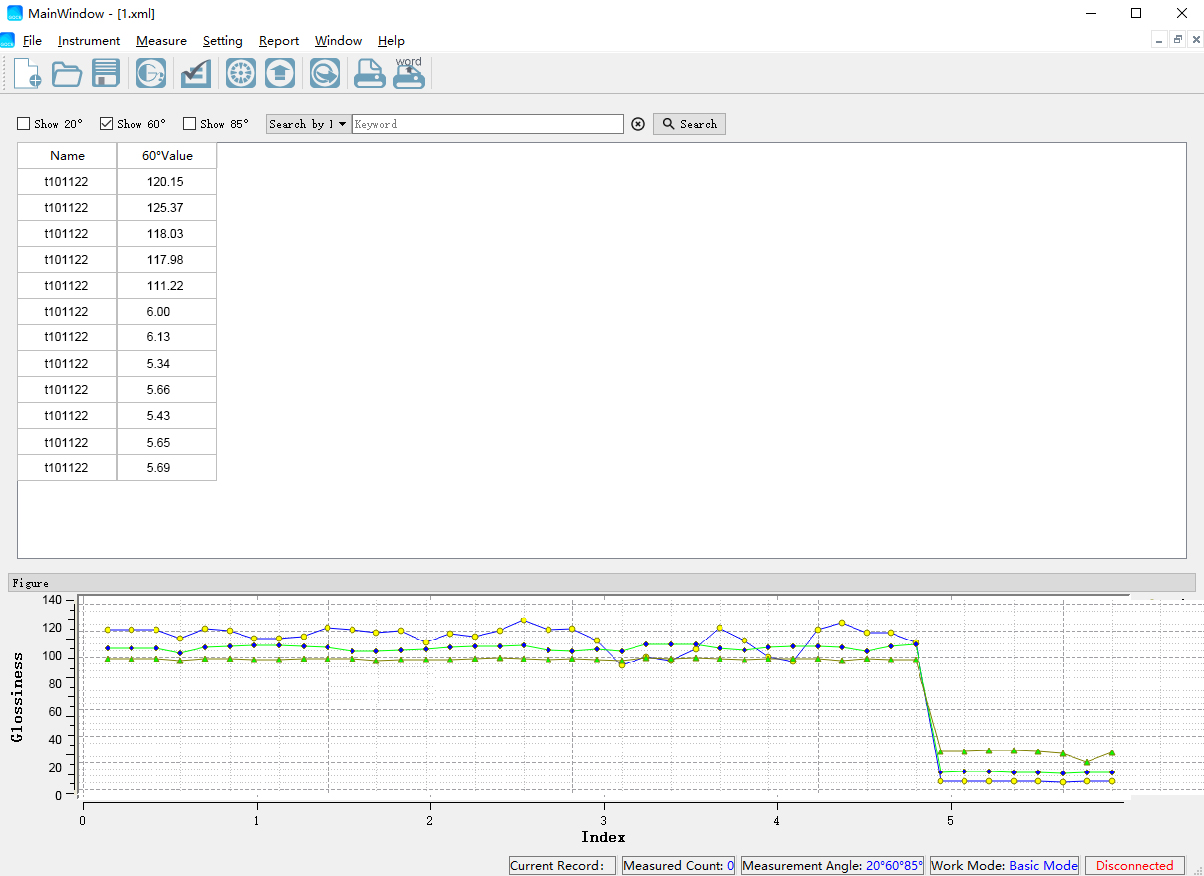

5、Powerful PC software support

The instrument is equipped with dedicated computer software (only supports Windows system), which can be connected to a computer for testing, and can generate test reports from the measured data.
